Technical specificationsX
Innendurchmesser: 160 mm
Außendurchmesser: ca. 164 mm
Standardlängen: Erhältlich in verschiedenen Ausführungen (z. B. 500 mm oder 700 mm, individuell kürzbar).
Kompatibilität: e²-Serie, e²60, ALD, RA 15-60 sowie alle passenden LUNOS Innen- und Außenblenden.
Lieferumfang: Rundkanal 9/R 160 in der gewählten Länge.
| Typ / Modell |
Beschreibung / Ausführung |
Länge / Maße |
Artikelnummer |
| 9/R 160-500 |
Standard-Rundkanal Kunststoff, Ø 160 mm |
Länge: 500 mm (kürzbar) |
036779 |
| 9/R 160-700 |
Überlänge-Rundkanal Kunststoff, Ø 160 mm |
Länge: 700 mm (kürzbar) |
039972 |

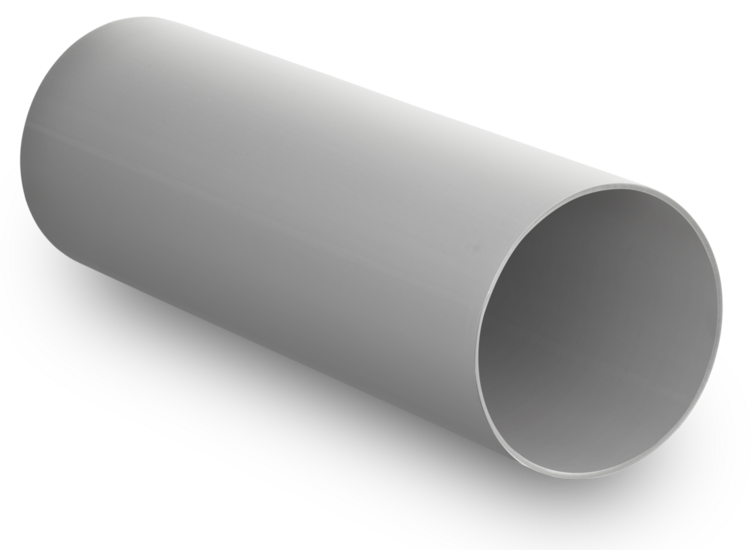

Round duct for the 160 series – Versatile application for optimal airflow
The round duct is an essential component for all ventilation units in the 160 series, including the LUNOtherm facade elements for ventilation in window reveals. It ensures efficient airflow and is available in two practical sizes to meet different requirements.
Available sizes:
- ∅ 160 x L 500 mm
- ∅ 160 x L 700 mm
Installation
The 9/R 160 round duct is easy to install. It is inserted directly into the exterior wall or into the 9/MRD wall mounting housing. This simple assembly allows for quick and efficient installation, so that the ventilation systems can be put into operation quickly.
Available types:
- 9/R 160-500 (Art.-no.: 36765)
- 9/R 160-700 (Art.-no.: 39891)
The round duct for the 160 series is the perfect choice for anyone who values reliable and effective airflow. You benefit from high quality and easy handling to optimally design your ventilation systems.
Gefertigt aus hochwertigem, schlagfestem Kunststoff überzeugt das 9/R 160 durch hohe Formstabilität und lange Lebensdauer. Es lässt sich auf der Baustelle individuell und mühelos auf die exakte Wandstärke anpassen. Ob in Verbindung mit Wandeinbaugehäusen im Rohbau oder direkt in einer Kernlochbohrung – der Rundkanal ist die zuverlässige Basis für Lüfter mit Wärmerückgewinnung, Abluftelemente und Außenwandluftdurchlässe.
