Technical specificationsX
Volume flow 9) 5 - 60 m³/h
Max. degree of heat provision b) 96 %
Heat supply level according to EN 13141-8 c) 0 - 40: 88 %
0 - 60: 83 %
Max. standard sound level difference Dn,e,w 3) 67 dB
Sound power level LW 3) from 18 dB(A)
Power consumption 3) 9) 0.4 - 3.3 W
Minimum installation length 280 mm (less on request)
Dimensions Ø 154 x 243 mm
Compatibility All 160 systems incl. LUNOtherm and external hoods as external finish
Energy efficiency class A+



(1-9, a-g) For further information on the technical data specifications click here.

The e²60: With heat recovery

The e² series

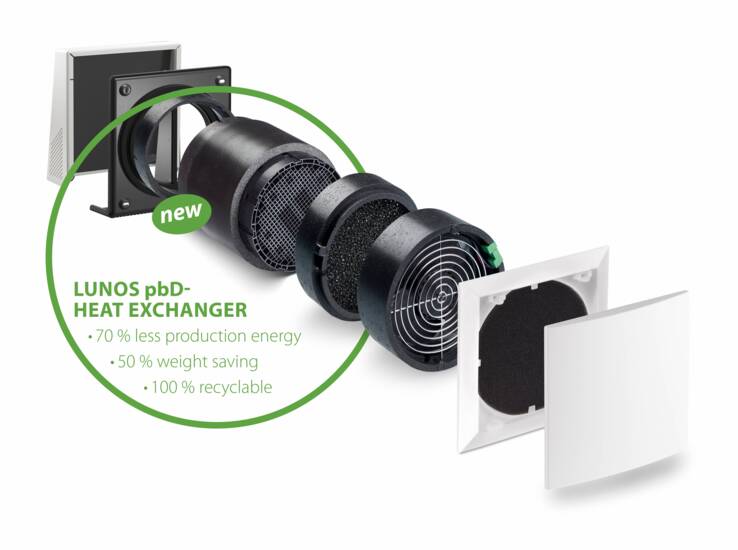

With the new heat exchanger the e²60 from the e² series is one of the smallest, lightest and most sustainable decentralised fans with heat recovery in home ventilation in the single-channel device class worldwide.

Special features

The e²60 is pressure-optimised, making it the first axial fan to ensure a constant volume flow even in areas with very high back pressures, such as on the coast or at high altitudes. An optional, intelligent control system ensures that the occurring back pressures are compensated for up to 20 Pa on request and that the air flow remains unaffected up to 40 m³/h. This fan therefore fulfils the new requirements for wind pressure stability in accordance with EN 13141-8 and is the first device of its type to achieve class S1.

The e²60 also has a sound pressure level of 18 dB(A), which makes it even quieter than the e². With a standard sound level difference of up to 67 dB, it achieves best values in terms of sound insulation. You can find all sound insulation values in the e²60 sound insulation catalogue.

Installation

The e²60 can be used in any e² environment, as the same grilles, outer hoods, inner screens and controls can be used. Quick retrofitting is possible at any time.

Extra

The products in our e² series all ensure demand-led air exchange in summer without having to open the windows all the time. You can read more about how to ventilate properly in summer here.

Approval

The e²60 has received building authority approval from DIBt on 24 September 2021. In addition, the e²60 FR with pipe, which is used in the USA and Canada, for example, has received its approval, which is granted on the North American continent according to even stricter rules (e.g. for more fire-resistant material).

Art.-no. 41157



Information on the technical data
