Volume flow ^d)	40 - 125 m³/h at 100 Pa
Heat supply level according to EN 13141-7 ^e)	75 m³/h: 92 % 100 m³/h: 87 % 125 m³/h: 85 %
Heat supply level according to PHI ^f)	83 %
device sound at 100 m3/h 100 Pa ^g)	45 dB
Specific power consumption (SPI) at 50 Pa ^{3) e)}	0.3 W/(m³/h)
Max. Power consumption at 125 m³/h,100 Pa ^{3) d)}	52 W
Mains voltage	100 - 240 V \| 50/60 Hz
External and internal leakage	class A1
Dimensions (H x W x D)	805 x 555 x 190 mm
Energy efficiency class	A
Installation options	New construction and renovation ceiling- and wall mounting 4 x DN 125 mm outlets

(1-9, a-g) For further information on the technical data specifications click here.

The LUNOMAT: Central ventilation unit

With heat recovery

Central ventilation unit

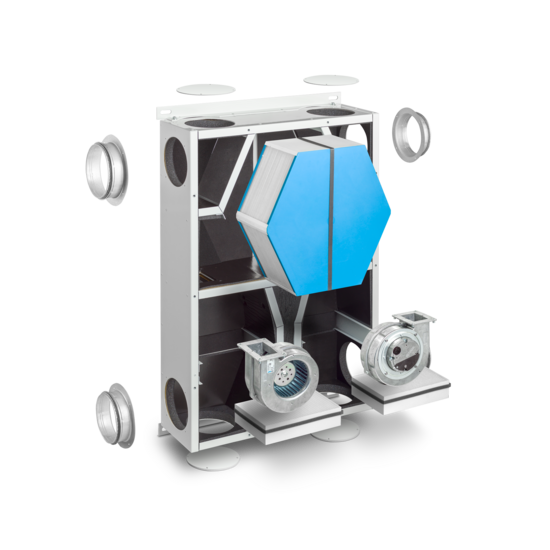

The LUNOMAT is a central ventilation unit with heat recovery for the aeration and deaeration of living spaces and facilities similar to living spaces, such as medical practices, schools and office spaces.

Special features

Equipped with two efficient ec centrifugal fans, extract and supply air can be delivered simultaneously with a constant volume flow of up to 125 m³/h at a pressure difference of up to 100 Pa.

The highly efficient enthalpy heat exchanger has an average heat recovery efficiency of 84% and can provide a pleasantly comfortable room climate due to its re-humidification property. This ensures optimum air distribution via an appropriate duct network.

With the replaceable class F7 filter 9/FLUN-7, the LUNOMAT also meets high filtration requirements. In addition, all LUNOS controls can be used with this device and commands from standard smart home controls or homee can also be received via optional wireless modules or the 0-10 V input.

Installation

The ventilation unit is designed for installation in partition walls and suspended ceilings. It can be mounted vertically on a wall or horizontally under a ceiling and therefore offers simple integration into existing building structures.

Approval

The LUNOMAT received the General Building Approval from the DIBt on June 3, 2021. It was also certified by the Passive House Institute as a highly efficient ventilation unit with heat recovery.

Art.-no. 40149

Information on the technical data

Show technical data
