External closures

For the Silvento ec

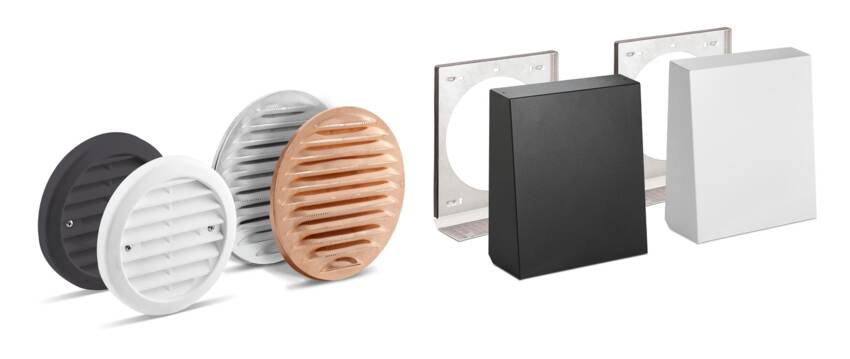

External grille for round duct inner diameter 80-125 mm, insect screen. Stainless steel and copper version for plug-in, Ø = 150 mm.

Outer hood with sound insulation for round duct inner diameter up to 105 mm, aluminium powder-coated white (similar to RAL 9016) and anthracite (similar to RAL 7016).

Installation

The installation is done by screwing and dowelling the frame to the outside wall. The hoods are simply pushed into the screwed frame and fixed with two small screws on the underside.

Dimensions 1/HWE 115/ 1/HAZ 115

(h x w x d): 170 x 140 x 72 mm



Art.-no. Outer grille Art.-no. Metal outer grille Art.-no. Outer hoods
1/WE 115 - 39 951 1/RME 150 - 39907 1/HWE 115 - 40128
1/AZ 115 - 41 144 1/RMK 150 - 39908 1/HAZ 115 - 40129
1/BE 115 - 39 953
